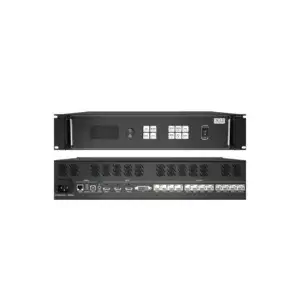

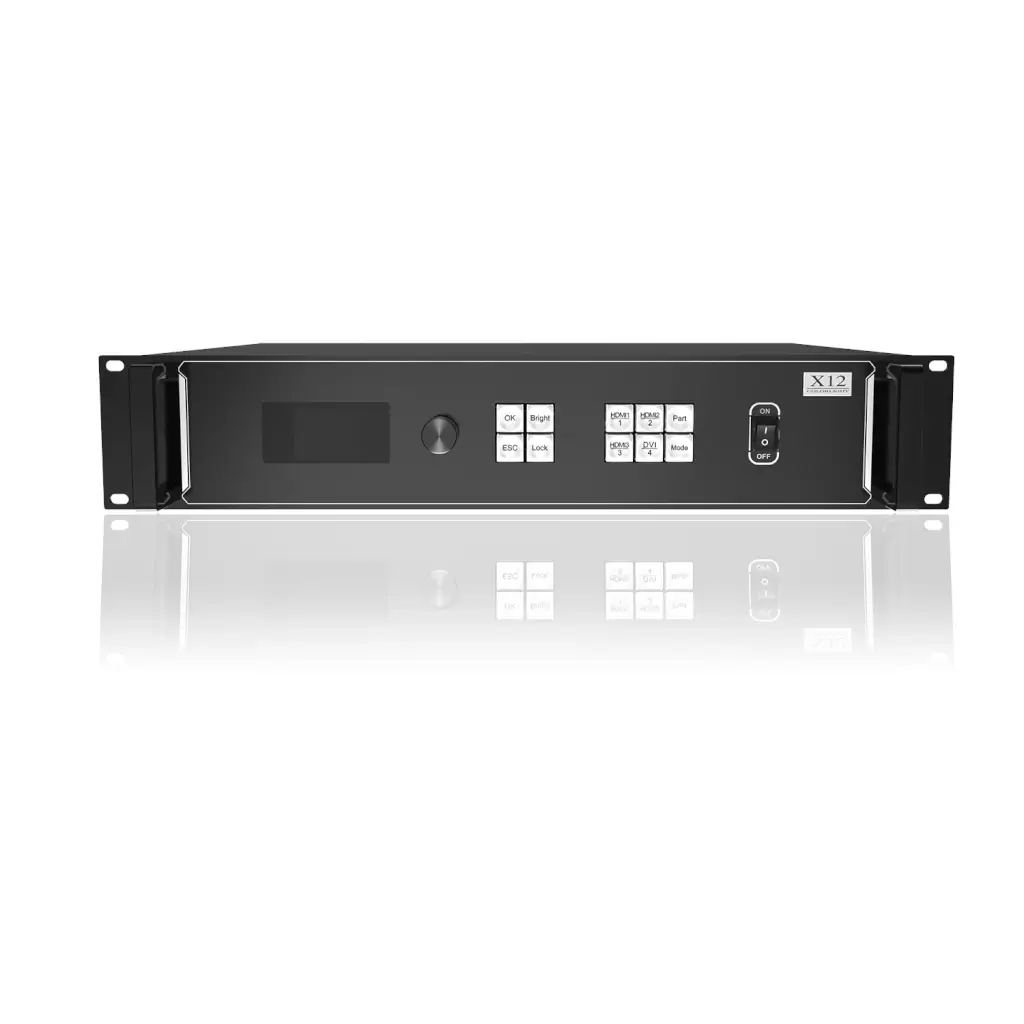

Colorlight X12 LED Screen Video processor Controller

Colorlight X12 Professional LED Controller Box Features:

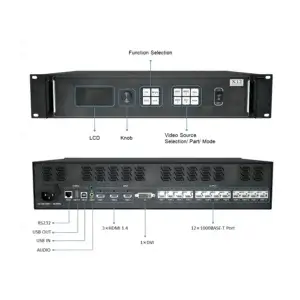

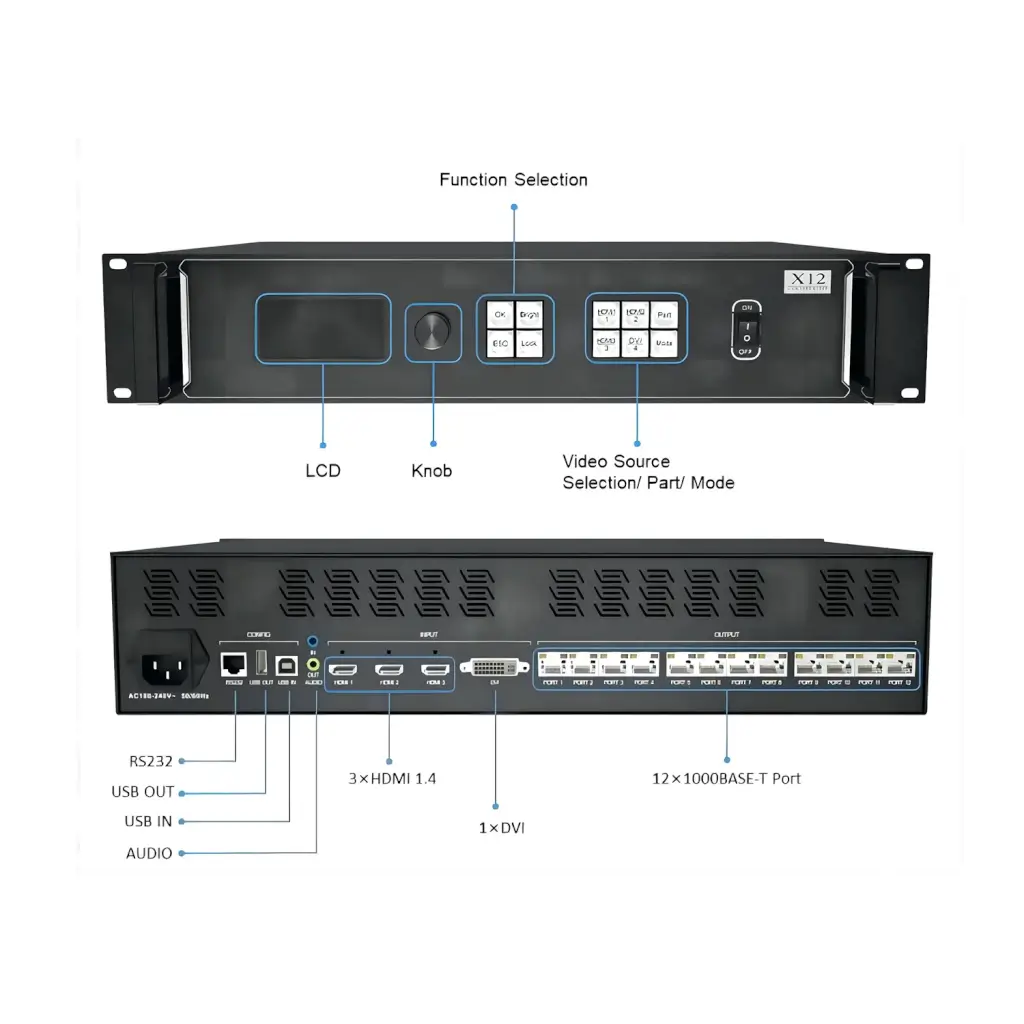

1. Input Channels: 1 DVI input and 3 HDMI1.4 inputs.
2. Maximum Load: Supports up to 7.2 million pixels, with a maximum width of 8192 pixels or a maximum height of 4096 pixels.
3. Input Resolution: Single channel maximum input resolution is 1920×1200@60Hz, with customizable resolution settings and HDCP1.4 protocol high-bandwidth digital content protection.
4. Output: 12-way Gigabit Ethernet port output, supporting single or dual redundant backup.
5. Video Processing: Video sources can be switched, cropped, spliced, and zoomed arbitrarily.
6. Multi-Screen Display: 3-screen display with adjustable window position and size.
7. Adjustments: Brightness and color temperature adjustments, supporting contrast, hue, and saturation settings.
8. Low Brightness and High Gray: Maintains complete grayscale display under low brightness conditions.
9. Communication: Dual USB2.0 high-speed communication interface for computer debugging and arbitrary cascading between main controls.
10. Control: RS232 serial protocol control.
