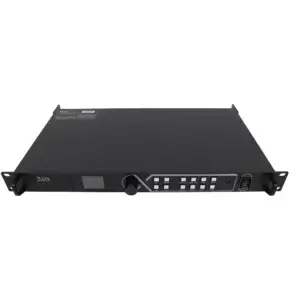

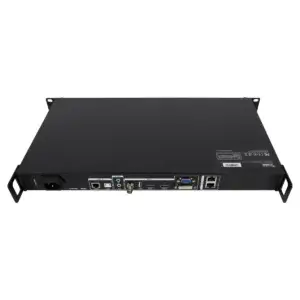

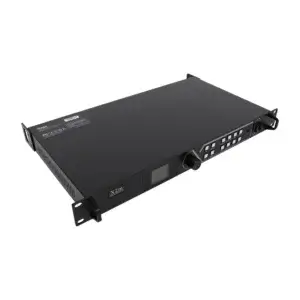

Colorlight X2m LED Screen Video processor Controller

Colorlight X2m LED Display Professional Main Controller Features:

Input:

• Resolution: Maximum 1920×1080 @ 60Hz
• Signal Sources: 2x HDMI 1.4, 1x DVI, 1x VGA, 1x CVBS
• U-Disk Interface: 1x USB

Output:

• Loading Capacity: 1.3 million pixels
• Maximum Dimensions: Width up to 3840 pixels or height up to 2000 pixels
• Ethernet Ports: 2 Gigabit Ethernet output ports, supporting redundancy

Audio:

• Input: 1x 3.5mm
• Output: 1x 3.5mm, supports HDMI and DP audio outputs

Functions:

• Image Processing: Supports switching, clipping, and zooming
• Screen Adjustment: Contrast, saturation, chroma, brightness compensation, and sharpness adjustment
• Color Space Conversion: Converts Limit Range to Full Range input color space
• Correction: Send and read back screen correction factor, advanced stitching
• HDCP: Supports HDCP 1.4
• Color Management: Supports Precise Color Management and maintains better gray level at low brightness
• Presets: 16 scene presets
• Media Playback: Play back pictures and videos from U-disk, OSD for U-disk playback and screen adjustment (Remote controller optional)

Control:

• USB: For control or cascading
• RS232: Protocol control
• Remote Control: Infrared remote control (optional)
