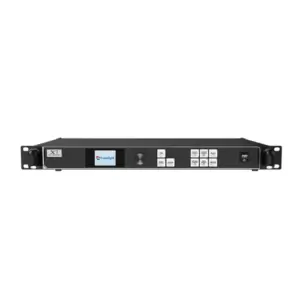

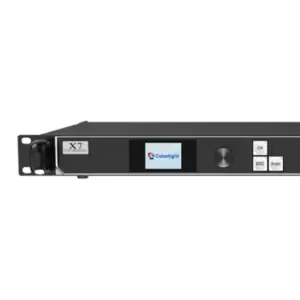

Colorlight X7 Video Processor Controller – Professional LED Screen Solution – Dubai, UAE

Professional Overview

The Colorlight X7 is a premier control system and video processing solution, expertly engineered for large-scale LED applications in the GCC market, particularly Dubai. This state-of-the-art controller offers a versatile range of video signal interfaces, including high-definition digital ports (SDI, HDMI, DVI), ensuring efficient signal switching and superior performance. Ideal for projects that demand broadcast-quality scaling and multi-picture displays, the Colorlight X7 allows businesses to deliver exceptional visual experiences.

Key Features

• Supports a variety of digital signal ports: 1×SDI, 1×HDMI, 2×DVI
• Input resolution capability up to 1920×1200@60Hz
• Impressive loading capacity of 5.2 million pixels
• Flexible maximum dimensions – width: 8192 pixels, height: 4096 pixels
• Seamless arbitrary source switching
• Supports three-picture displays with adjustable locations and sizes
• 16 preset modes for quick access to saved configurations
• HDCP1.4 support for secure content transmission
• Dual USB2.0 ports facilitate high-speed configuration and cascading
• Full adjustment capabilities for brightness, chromaticity, contrast ratio, tone, and saturation
• Enhanced grayscale performance for low-brightness conditions
• Compatible with Colorlight’s receiving cards, multifunction cards, and optical fiber converters

Detailed Specifications

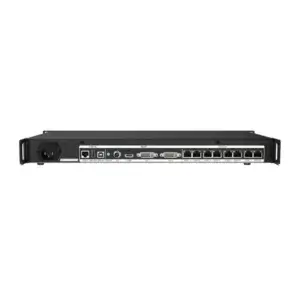

Input Interfaces:

• DVI: 2 inputs, VESA Standard (supports 1920×1200@60Hz), HDCP compliant
• HDMI: HDMI input, EIA/CEA-861 Standard, supports 1920×1200@60Hz, HDCP compliant
• SDI: SDI input, compatible with 3G-SDI, HD-SDI, SD-SDI
• AUDIO: Audio input for optional multifunction cards

Output Interfaces:

• Port1-8: 8 Gigabit Ethernet ports via RJ45

Controlling Interface:

• USB_IN: USB input for PC parameter configuration
• USB_OUT: USB output for cascading with additional controllers
• RS232: RJ11 interface for central control connections

Physical Specifications:

• Size: 1U standard box (482.6mm × 44mm × 237.5mm)
• Input Voltage: AC 100~240V
• Rated Power Consumption: 25W
• Operating Temperature: -40~70℃

Call to Action

Enhance your LED display projects with the Colorlight X7. Don’t miss out on superior quality and performance tailored for the GCC market. Contact us today to learn how the Colorlight X7 can meet your needs!
