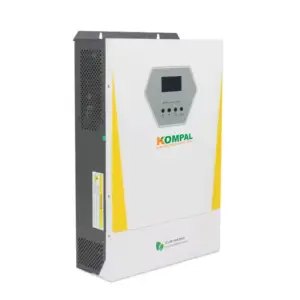

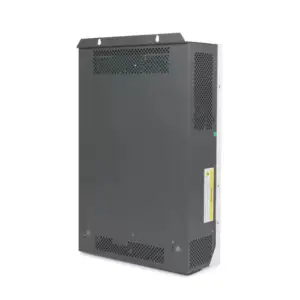

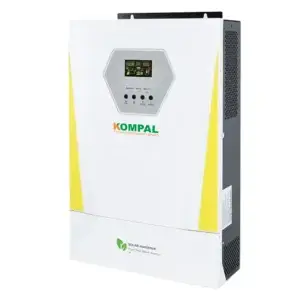

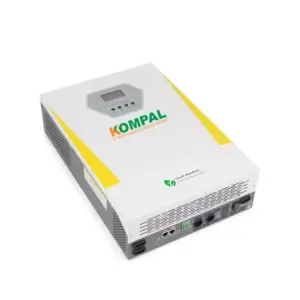

KOMPAL HYBRID SOLAR INVERTER 5.5KW

1,232 AED

&UAE PRICE
Category:

Ours Service

  • We have shop in Dubai for set up service
  • Price may changed due to market situation, contact us for order
  • All Products only with official factory warranty
  • Secure online payment by Stripe.com
Guaranteed Safe Checkout

energy into your home or business. Combining advanced technology with high efficiency, this inverter allows you to harness solar power, manage energy storage, and provide backup power in one compact solution. Key features include:

  • Hybrid Functionality: Supports both grid-tied and off-grid applications, ensuring continuous power supply.
  • Energy Storage: Compatible with battery systems for storing excess energy and using it when needed.
  • Efficiency: Maximizes energy conversion and reduces losses, ensuring optimal solar usage.
  • Smart Management: Equipped with intelligent monitoring systems to track power generation, usage, and storage in real time.
  • Durability: Built to withstand diverse environmental conditions, ensuring long-term reliability.

The GD5548JMHB is an ideal choice for those looking to improve energy independence while maintaining flexibility and efficiency.

The GD5548JMHB is a solar hybrid inverter with key specifications tailored for off-grid and backup power applications. Here’s an overview:

  • Rated Power: 5.5 kW (5500W)
  • Input Voltage: 220/230/240 VAC with an input range of 90-280 VAC
  • Output Voltage: 220/230/240 VAC (±5%)
  • Output Frequency: 50/60 Hz ±0.1%, with pure sine wave output
  • Battery: 48V DC system
  • Charging: Max PV input is 5500W, with MPPT tracking in the 120-500V DC range
  • PV Input Current: Max 18A
  • Max PV Charge Current: 100A
  • Display: LCD for monitoring operating mode, load, input/output conditions
  • Peak Power: Up to 11,000 VA for high surge conditions

It’s equipped for efficient solar energy use with MPPT (Maximum Power Point Tracking) technology and supports both PV and AC charging. The inverter also operates with low noise levels (under 50dB) and is designed to function in various grid environments

Specifications:
MODEL GD5548JMHB
Input voltage
Input Formation L+N+PE
AC Input 220/230/240VAC
Input Voltage Range 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency 50/60Hz(Adaptive)
Output
Rated Power 5500W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time (Adjustable) 10ms,20ms 10ms for Computer Equipment, 20ms for Household Equipment
Peak Power 11000VA
Overload Ability Battery Mode: 21s@105%~150% Load 400ms@>200% Load 11s@150%~200% Load
Grid connected
Operation
Output Voltage 220/230/240VAC
Grid Voltage Range 195-253VA
Grid Frequency Range 49-51±1Hz/59-61±1Hz
Output Current 23.9A
Power Factor Range >0.99
(DC/AC) Conversion Efficiency 98%
Battery
Rated Voltage 48VDC
Constant Charging Voltage (Adjustable) 56.4VDC
Float Charging Voltage (Adjustable) 54VDC
Charger
PV Charging Method MPPT
Max PV Input 6200W
MPPT Tracking Range 60~500VDC
Best VMP Working Range 300~400VDC
MAX PV Input Voltage 500VDC
MAX PV Input Current 18A
MAX PV Charge Current 100A
MAX AC Charge Current 60A
MAX Charge Current 100A
Display LCD Can display operating mode/load/input/output

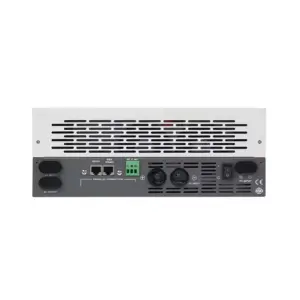

Interface
RS232 5PIN/Pitch2.54mm,Baud Rate 2400
Expansion Slot Communication Interface
2x5PIN/Pitch2.54mm, WIFI,Lithium Battery BMS Communication Card
, WIFI 2×5PIN/Pitch2.54mm
Parallel Interface Support Parallel
Ambient Temperature
Operating Temperature -10°C~50°C
Storage Temperature -15°C~60°C
Ork Altitude
1000m, 1000m,4000m,IEC62040 No more than 1000m, If 1000m<, Rate power will
lower, MAX 4000m, Refer to IEC62040
Operating Environment Humidity 20%~95% Non Condensing
Noise ≤50db
Dimension L*W*H (mm) 495*312*146mm
Standards and Certifications EN-IEC 60335-1,EN-IEC 60335-2-29,IEC 62109-1
