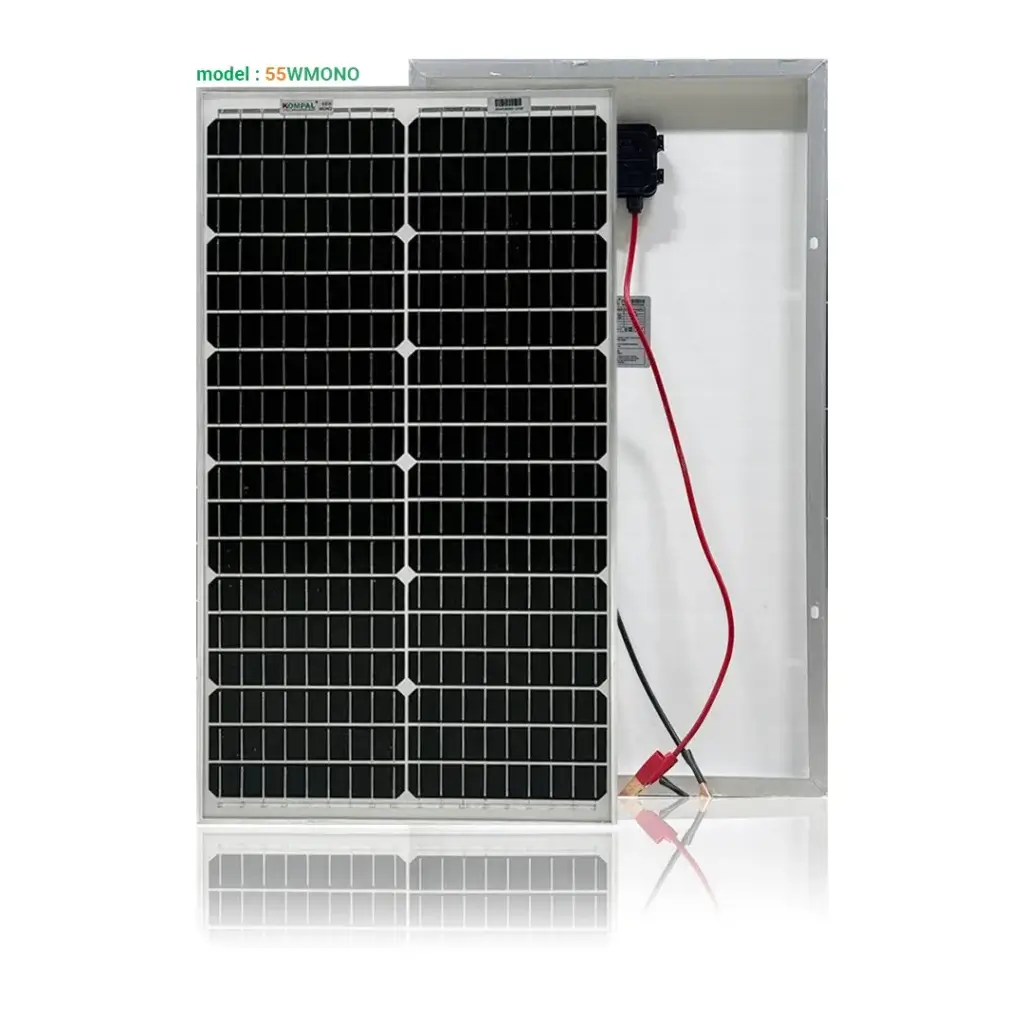

Here are the general specifications for a 55W Monocrystalline Solar Panel (55W MONO):
General Specifications:
- Power Output (Pmax): 55W
- Solar Cell Type: Monocrystalline
- Maximum Power Voltage (Vmp): 18-19V
- Maximum Power Current (Imp): 2.89-3.05A
- Open Circuit Voltage (Voc): 21-22V
- Short Circuit Current (Isc): 3.1-3.2A
- Module Efficiency: Approximately 16-20%
- Dimensions: Typically around 600mm x 550mm x 30mm (may vary depending on manufacturer)
- Weight: Around 3-4 kg
- Cable: 1-2 meters, usually with MC4 connectors
- Frame: Anodized aluminum
- Glass: Tempered glass, 3.2mm thickness
- Temperature Range: -40°C to +85°C
- IP Rating: Usually IP65 (dust-tight and water-resistant)
Features:
- Monocrystalline: High efficiency and better performance in low-light conditions compared to polycrystalline panels.
- Durability: Withstands extreme weather conditions, making it ideal for outdoor and off-grid applications.
- Compact Size: Suitable for mid-range off-grid solar setups, such as RVs, boats, small residential setups, or for charging 12V batteries.
Applications:
- Solar power systems: For cabins, small homes, or standalone power stations.
- Battery charging: Suitable for 12V battery systems in boats, RVs, or backup systems.
- Portable solar generators: Ideal for charging or supporting small solar-powered devices or generators.
Specifications:
Model Number | 55WMONO |
Maximum Power(Pmax) | 55W |
Panel Size(mm) | 700*390*25 |
Maximum Current(Imp) | 3.06A |
Working Voltage (vmp) | 18v |
Open Circuit Voltage (voc) | 22v |
