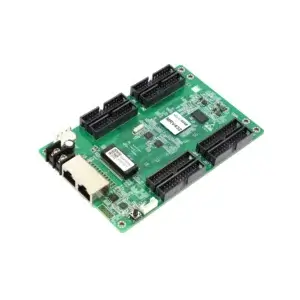

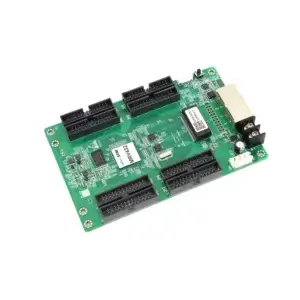

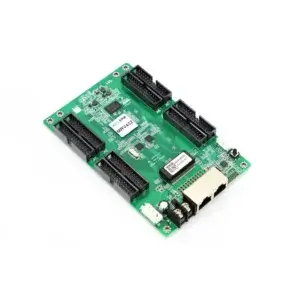

Novastar MRV432 Receiving Card

Novastar MRV432 LED Screen Receiving Card Features:

• Pixel-Level Brightness and Chroma Calibration: In conjunction with NovaLCT and NovaCLB, the receiving card supports brightness and chroma calibration for each LED, effectively eliminating color discrepancies and significantly improving brightness and chroma consistency, resulting in superior image quality.
• Quick Adjustment of Dark or Bright Lines: Easily adjust dark or bright lines caused by the splicing of modules or cabinets to enhance the visual experience. Changes take effect immediately.
• 3D Function: When paired with a compatible sending card, the receiving card supports 3D output.
• Individual Gamma Adjustment for RGB: With NovaLCT (V5.2.0 or later) and a supporting sending card, the receiving card allows for individual adjustment of red, green, and blue Gamma. This helps manage image nonuniformity at low grayscale levels and corrects white balance offset, delivering more realistic images.
• Image Rotation in 90° Increments: The display image can be rotated in multiples of 90° (0°/90°/180°/270°).
• Mapping Function: Cabinets can display the receiving card number and Ethernet port information, making it easier to determine the locations and connection topology of receiving cards.
• Pre-Stored Image Setting in Receiving Card: Customize the image displayed during startup, when the Ethernet cable is disconnected, or when there is no video signal.
• Temperature and Voltage Monitoring: Monitor the receiving card’s temperature and voltage without additional peripherals.
• Cabinet LCD: The cabinet’s LCD module can display temperature, voltage, single run time, and total run time of the receiving card.
• Bite Error Detection: Monitor the Ethernet port communication quality and record erroneous packets to troubleshoot network communication problems. Requires NovaLCT V5.2.0 or later.
• Firmware Program Readback: Read back and save the receiving card firmware to a local computer. Requires NovaLCT V5.2.0 or later.
• Configuration Parameter Readback: Read back and save the receiving card configuration parameters to a local computer.
