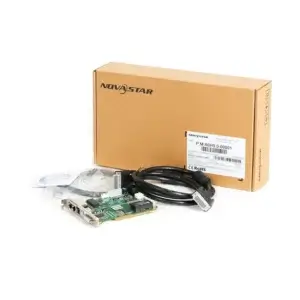

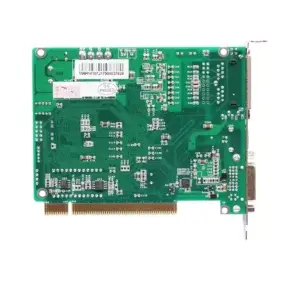

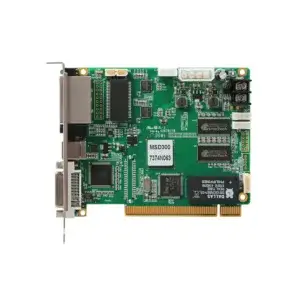

Novastar MSD300 Sending Card

Indicator Lights:

• Red: Device Operating Indicator
  • On: Power supply is normal.
  • Off: No power supply or power supply is abnormal.
• Green: Device Status Indicator
  • Slow flashing: Video input unavailable
  • Normal flashing: Video input available
  • Fast flashing: Startup image is displaying
  • Breathing: Ethernet port redundancy is active

Input:

• DVI×1:
  • Single-link DVI input connector
  • Maximum supported resolution: 1920×1200 @ 60Hz, downward compatible
  • Customizable resolution
  • Maximum width: 3840 pixels
  • Maximum height: 1920 pixels
• AUDIO: Audio input connector

  Output:

  • RJ45×2:
    • 2 Gigabit Ethernet ports
    • Maximum loading capacity per port: 650,000 pixels
    • Supports Ethernet port redundancy

  Control:

  • USB (Type-B): Connects to the PC
  • UART IN/OUT: Input/Output connectors for cascading devices

  Function Connector:

  • LIGHT SENSOR: Connects to a light sensor to monitor ambient brightness, enabling automatic brightness adjustment of the LED display

  Power Supply:

  • DC 3.3V~5.5V: DC power connector
