NovaStar VX1000 LED video controller

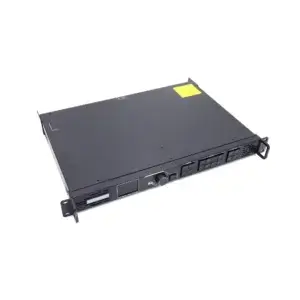

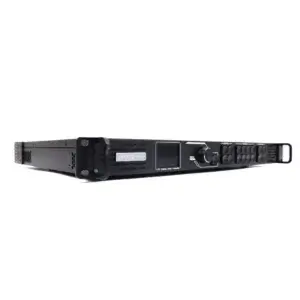

Novastar VX1000 All-in-One LED Screen Controller Introduction

The VX1000 All-in-One LED Screen Controller is NovaStar’s latest innovation, combining video processing and control into a single unit. Featuring 10 Ethernet ports, the VX1000 supports video controller, fiber converter, and Bypass working modes. It can drive up to 6.5 million pixels, with a maximum output width of 10,240 pixels and a height of 8,192 pixels, making it ideal for ultra-wide and ultra-high LED screen applications.

The VX1000 can receive various video signals and process high-resolution 4Kx1K@60Hz images. It includes features like stepless output scaling, low latency, 3D support, pixel-level brightness, and chroma calibration, providing an excellent image display experience.

Additionally, the VX1000 is compatible with NovaStar’s advanced software, NovaLCT and V-Can, simplifying in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management, and firmware updates.

With its powerful video processing and sending capabilities, the VX1000 is perfect for medium and high-end rental, stage control systems, and fine-pitch LED screens.

Novastar VX1000 All-in-One LED Screen Controller Features:

Input Connectors:

• 1x HDMI 1.4 (IN & LOOP)
• 1x HDMI 1.4
• 1x DVI (IN & LOOP)
• 1x DVI
• 1x 3G-SDI (IN & LOOP)
• 1x 10G optical fiber port (OPT1)

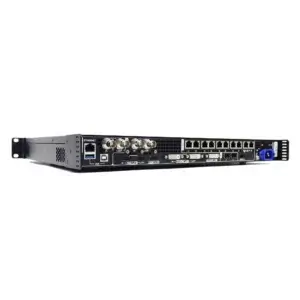

Output Connectors:

• 10x Gigabit Ethernet ports
  • Drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a height of 8,192 pixels.
• 2x Fiber outputs
  • OPT 1 mirrors the output on 10 Ethernet ports.
  • OPT 2 mirrors or backs up the output on 10 Ethernet ports.
• 1x HDMI 1.3
  • For monitoring or video output.

Additional Features:

• Self-Adaptive OPT 1: Can be used as either video input or sending card output, depending on the connected device.
• Audio Input and Output:
  • Audio input with HDMI input source.
  • Adjustable audio output via multi-function card.
• Low Latency: Reduces delay to 20 lines when low latency and Bypass mode are enabled.
• 3 Layers: Adjustable layer size, position, and priority.
