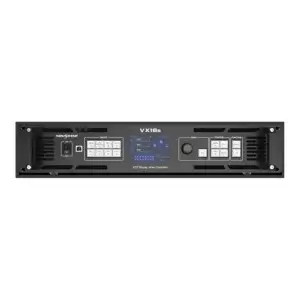

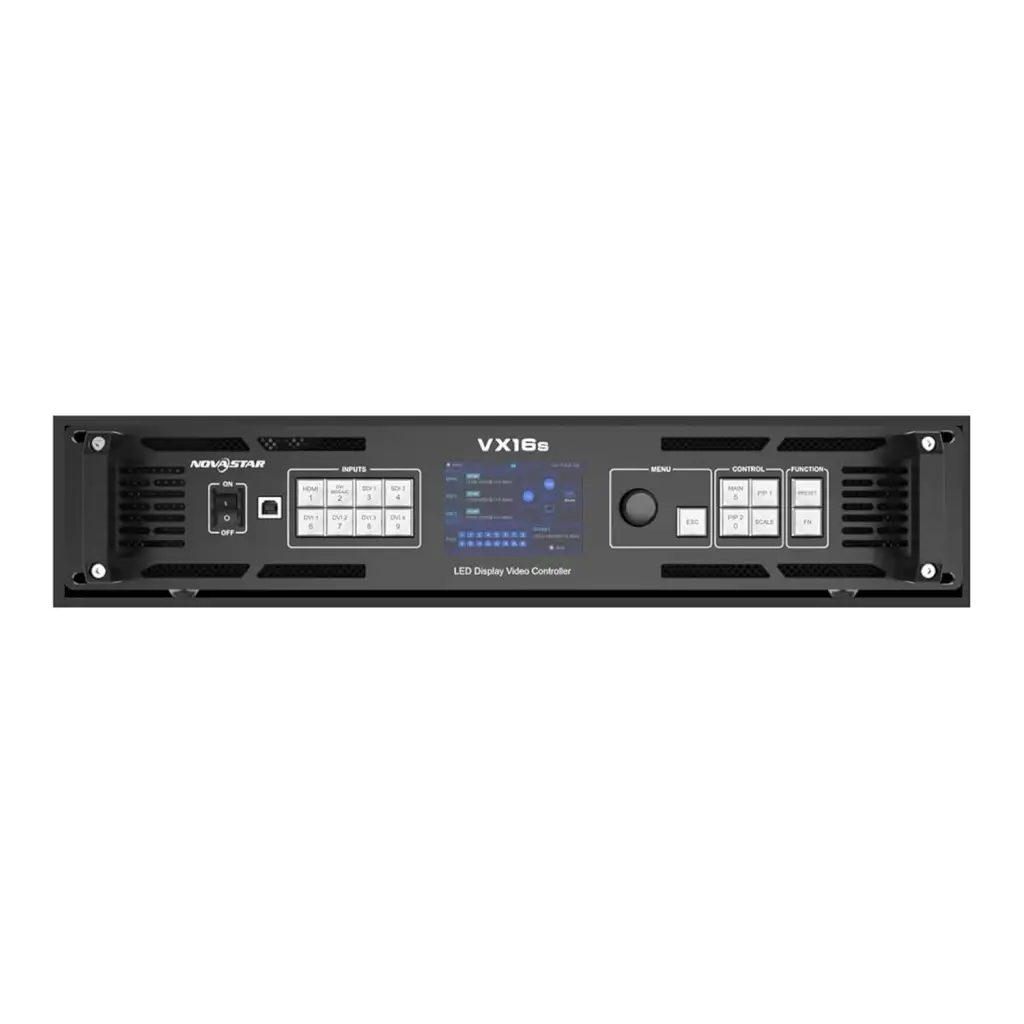

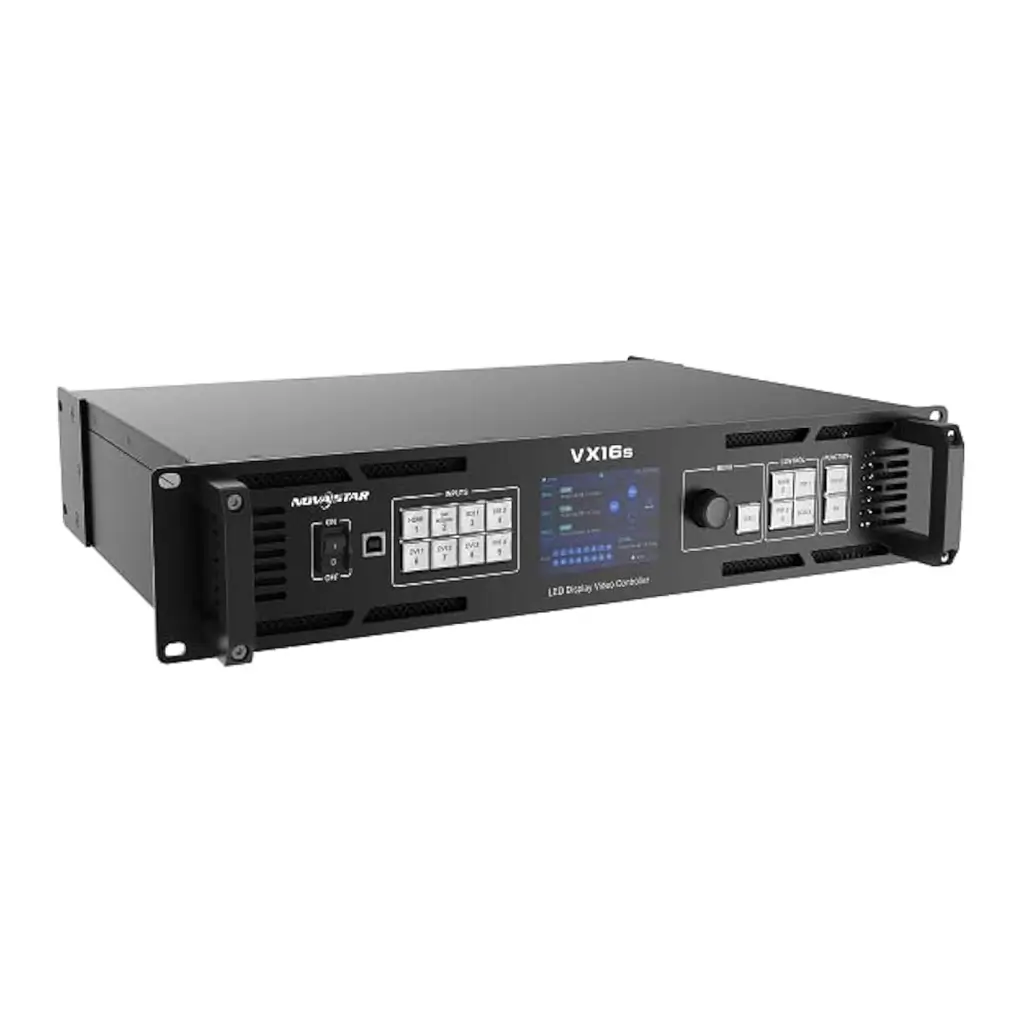

Novastar VX16S Professional LED Video Processor

Product Description

Paired with Novastar’s V-Can video control software, the VX16S LED controller offers enhanced image mosaic effects and simplified operations.

The Novastar VX16S supports various video signals, delivering Ultra HD 4K×2K@60Hz image processing and sending capabilities, with a total capacity of up to 10,400,000 pixels.

Thanks to its robust image processing and transmission capabilities, the Nova VX16S video screen controller is ideal for applications such as stage control systems, conferences, events, exhibitions, high-end rental, and fine-pitch displays.

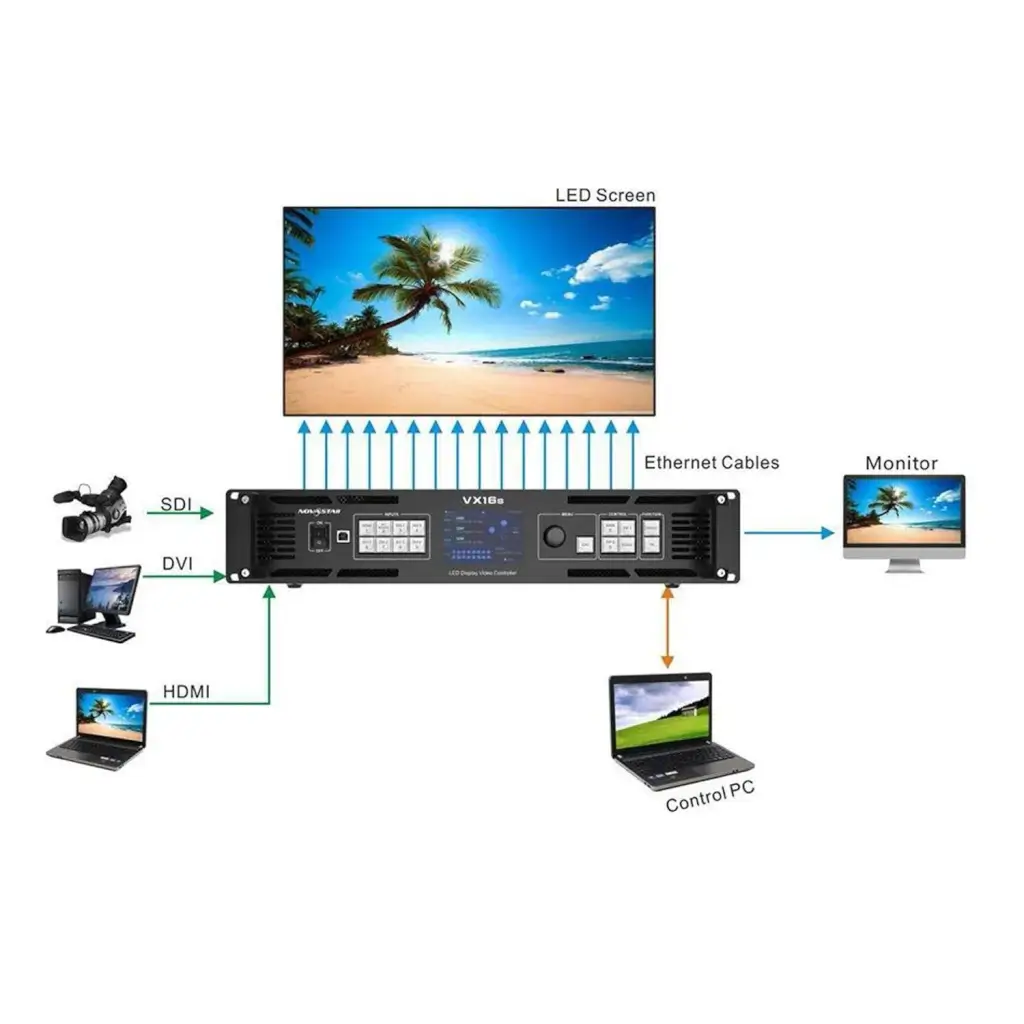

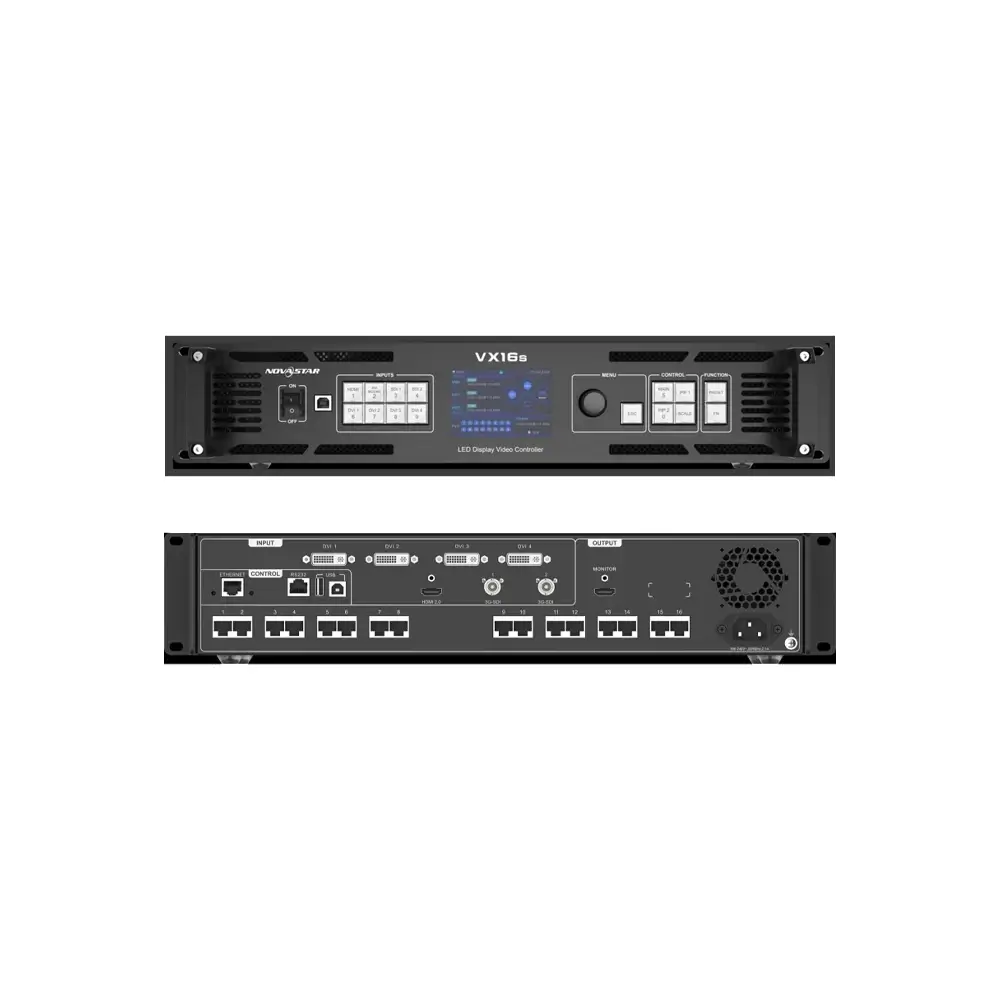

Industry-Standard Input Connectors:

• 2x 3G-SDI
• 1x HDMI 2.0
• 4x SL-DVI

Output Features:

• 16 Ethernet output ports capable of loading up to 10,400,000 pixels
• 3 independent layers:
  • 1x 4K×2K main layer
  • 2x 2K×1K PIPs (Picture-in-Picture)
  • Adjustable layer priorities

Advanced Features:

• DVI Mosaic: Combine up to 4 DVI inputs into a single source, known as DVI Mosaic.
• Decimal Frame Rate Support: Compatible with frame rates of 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz, and 119.88 Hz.
• 3D Display: Supports 3D effects on LED screens, with halved output capacity when 3D is enabled.
• Personalized Image Scaling: Offers pixel-to-pixel, full-screen, and custom scaling options.
• Image Mosaic: Connect up to 4 devices with a video distributor to create a super large screen.
• V-Can Operation and Control: Simplifies device operation with up to 10 presets available for future use.
• EDID Management: Supports both custom and standard EDID.

Backup Design: In backup mode, if the signal is lost or the Ethernet port fails on the primary device, a backup device will automatically assume control.
