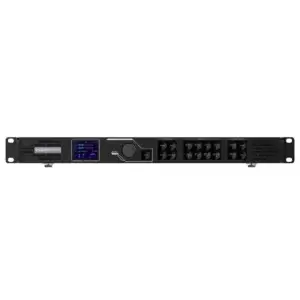

Novastar VX400 All-in-One LED Video Controller

Novastar VX400 All-in-One LED Video Controller Features:

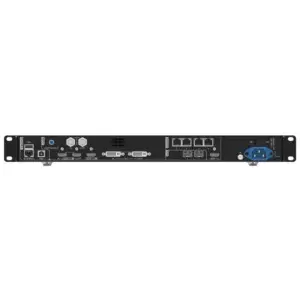

Input Connectors:

• 1x HDMI 1.3 (IN & LOOP)
• 1x HDMI 1.3
• 1x DVI (IN & LOOP)
• 1x 3G-SDI (IN & LOOP)
• 1x Optical Fiber Port (OPT1)

Output Connectors:

• 4x Gigabit Ethernet Ports:
  • A single device can drive up to 2.6 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
• 2x Fiber Outputs:
  • OPT 1 copies the output on 4 Ethernet ports.
  • OPT 2 copies or backs up the output on 4 Ethernet ports.
• 1x HDMI 1.3 for monitoring or video output.

Self-Adaptive OPT 1:

• OPT 1 can function as either an input or output connector, depending on the connected device, thanks to its self-adaptive design.

Audio Input and Output:

• Audio input accompanies HDMI input source.
• Output audio through the multi-function card with adjustable output volume.

Low Latency:

• Reduce the delay from the input to the receiving card to 20 lines when both the low latency function and Bypass mode are enabled.

2x Layers:

• Adjustable layer size and position.
• Adjustable layer priority.

Output Synchronization:

• An internal input source can be used as the sync source to ensure synchronized output images across all cascaded units.
