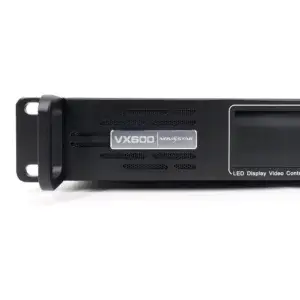

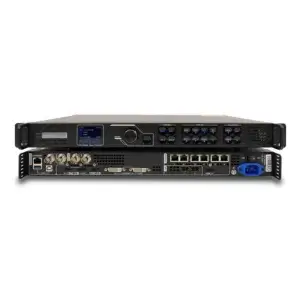

Novastar VX600 LED Screen Video Controller Features:
- Input Interfaces: Supports up to 7 interfaces:
- 2 channels of 3G-SDI
- 2 channels of HDMI1.3
- 2 channels of DVI
- 1 channel of USB
- Display Features:
- Supports 3 windows and 1 OSD channel.
- Quick and advanced screen functions.
- Take button supported in switcher mode.
- PGM preview in switcher mode.
- Resolution and Settings:
- Custom adjustment of input resolution and input source backup settings.
- Brightness adjustment for the screen.
- Multi-Device Support:
- Supports splicing and loading of multiple devices.
- Full-screen automatic zooming capability.
- Output:
- Maximum video output width of 4096 pixels.
- Supports creation of 16 user scenarios as templates for easy recall.
- Synchronization and Interface:
- HDMI or DVI input source selection for synchronization signal, achieving field-level synchronization of output.

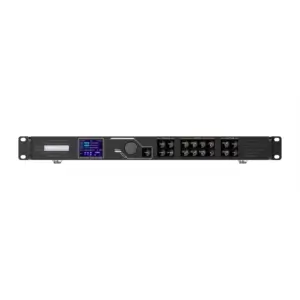

- Intuitive OLED display interface on the front panel with clear button light prompts, simplifying system control operations.

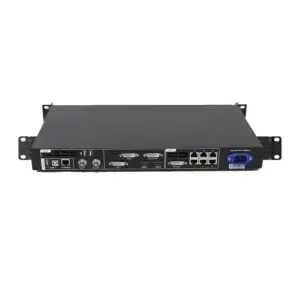

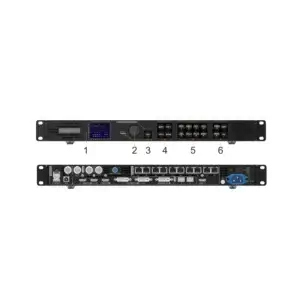

Novastar VX600S LED Screen Video Controller Parameters:
- Input Interfaces:
- 3G-SDI: 2 channels, supports up to 1920×1080@60Hz resolution, backward compatible.
- USB: 2 ports for U disk video and picture file playback, and mouse connection.
- U-AUDIO: 2 output audio interfaces.
- DVI: 2 channels, VESA standard supports up to 1920×1200@60Hz input, backward compatible, supports HDCP.
- HDMI: 2 channels, supports up to 1920×1200@60Hz resolution, backward compatible, supports HDCP.
- Output:
- Ethernet Port: 6-channel network port output interface.
- DVI: 1 pre-monitoring interface, configurable for PGM preview.
- USB Type-A: Used for device cascade output.
- Control Interface:
- Ethernet: 1 interface for PC communication or network access.
- USB Type-B: Connects to a PC for control and cascading input.
- Parameters:
- Power Interface: AC100V~240V 50/60Hz
- Operating Temperature: -20℃~60℃

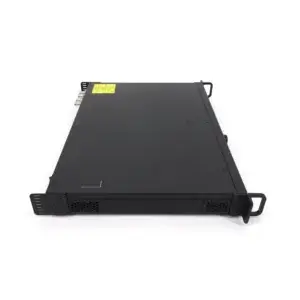

- Dimensions: 1U standard chassis
