description

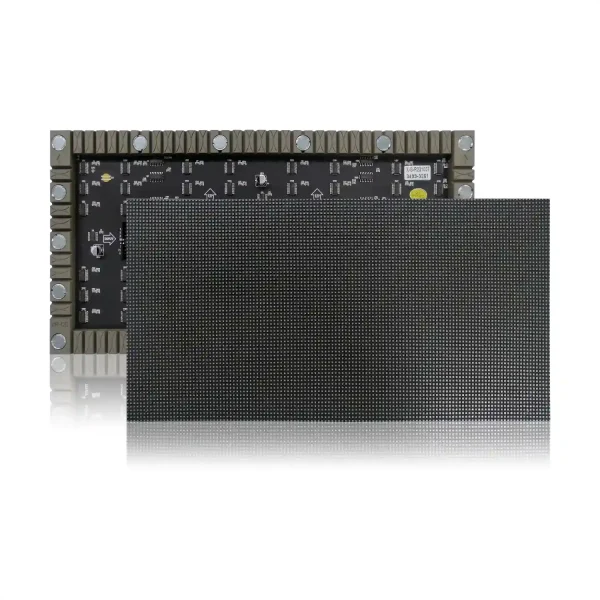

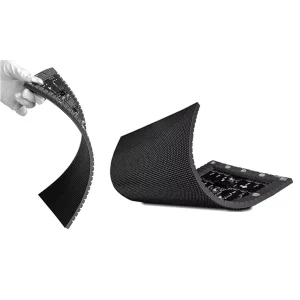

Flexible LED modules with a pixel pitch of 1.8 mm (F1.8) are designed for high-resolution close-up viewing applications. These units are ideal for creating curved or irregularly shaped displays due to their flexibility. Here is a comprehensive guide on handling, installing and maintaining F1.8 flexible LED modules:
1. Understanding F1.8 Flexible LED Modules
Pixel distance: 1.8mm, which means the distance between two adjacent pixel centers is 1.5mm.
2. Components and features

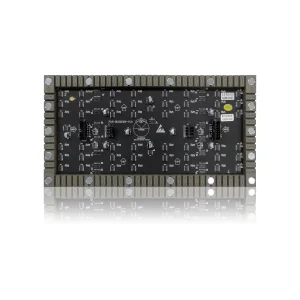

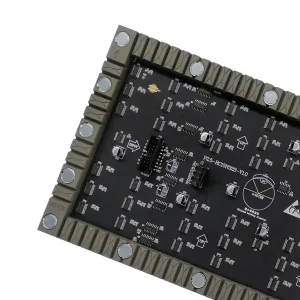

Flexible printed circuit board: The flexible printed circuit board allows the unit to be bent without damage.
Magnetic backing or mounting holes: for easy mounting to metal surfaces or structural frames.
Integrated drivers: ensure consistent power distribution and signal processing.
Connectors: Power and data connectors for connecting multiple units.
3. Installation process
Tools and materials
specification
| Physical | SMD | SMD1515 |
| Pixel Pitch | 1.86 | |
| Module Resolution (dot/m2) | 288906 | |
| Module Size(mm) | 320×160 | |
| Module Weight(kg) | 0.34 | |
| Optical | Creen Brightness(nits) | 750 |
| Color Temperature(K) | 12000 | |
| Viewing Angle | 1500/1500 | |
| Contrast Ration | ≥5000:1 | |
| Electric | Working Voltage (V) | 5 |
| Module Power(W) | 22 | |
| Power Consumption(Max) | 430 | |
| Power Consumption(Average) | 123 | |
| Input Voltage | AC90-132V/AC186-264V, Frequency47-63Hz | |
| Applicable Standards | GB4913/ENG0950 | |
| Performance | Frameshift Frequency | 60 Hz |
| Scan Mode | 43 Scan | |
| Gray Level | 16384 | |
| Refresh Frequency | 3840HZ | |
| Environment | Life Span | 100000H |
| Working Temperature/Humidity | 200C-400C/20-75%RH | |
| Storage Temperature/Humidity | 200C-400C/20-75%RH | |
| Applicable Standards | SJT11141-2017.GB/T26125-2011.GB/T26572-2001 |
