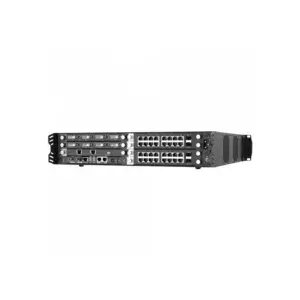

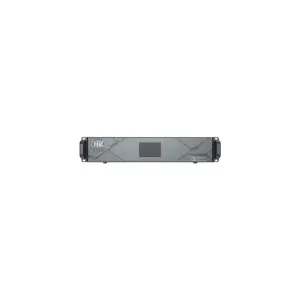

Novastar H-Series H2 Main Frame

Description

The H2 supports up to 26 million pixels, accommodating up to four input cards and two output cards. It features HDR10, HLG, and 10-bit processing, along with web control capabilities.

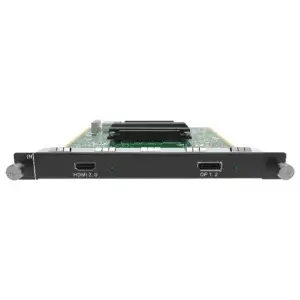

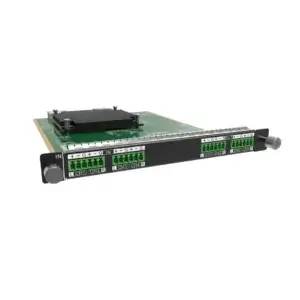

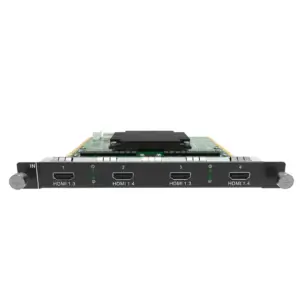

NovaStar’s H Series is designed for fixed installations with large, fine-pitch LED screens. The H2 is an all-in-one solution that integrates video splicing with LED processing in a single housing. Its modular design features hot-swappable plug-in modules, allowing for flexible configuration of input and output cards. A wide range of connector modules is available, offering industry-standard input connectors, so the system can be optimized for any installation.

Built on a powerful hardware FPGA system architecture, the H2 provides stable and efficient operation. It supports 10-bit video sources and processing, with 4K high-definition input and output. Two types of 4K LED sending cards are available, offering backup connections and ultra-long-distance transmission. The H2 supports multi-screen and multi-layer management, as well as input and output EDID management and monitoring. Its browser/server control architecture enables cross-platform, cross-system access and control from Windows, Mac, iOS, Android, and Linux devices, and even supports online collaboration among multiple users.

Specifications

Inputs

• RS-232: 1 port
• Ethernet Speed: 1 Gbit/s
• Input Slots: 4

Outputs

• Output Slots: 2

Software Specifications

• Control Software: NovaStar LCT

Extra Features

• Scaling Function: Yes
• Crop Settings: Yes
• Layers: Up to 32
• GenLock: In & Out

Control and Programming

• Display: LCD
• Maximum Loading Capacity: 26 million pixels
• Control Options: Ethernet, RS-232

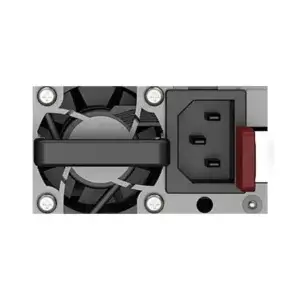

Electrical Specifications and Connections

• Power Supply: 100-240 V AC, 50/60 Hz
• Power Consumption: 210 W
• Power Connector In: IEC
• Data Connector In: RJ45
• Data Connector Out: RJ45

Mechanical Specifications

• Width (Including Handles): 483 mm
• Width (Without Handles): 440 mm
• Height (Including Handles): 88 mm
• Depth (Including Handles): 530 mm
• Weight: 15.6 kg
• Rack Units: 2 U
• IP Rating: IP20 (indoor use only)
• Color: Black, Gray

Thermal Specifications

• Maximum Ambient Temperature: 45 °C
• Operating Humidity: 0-80% RH

Included Items

• Included Cables: CAT-5 Cable, HDMI-HDMI Cable, IEC Cable
